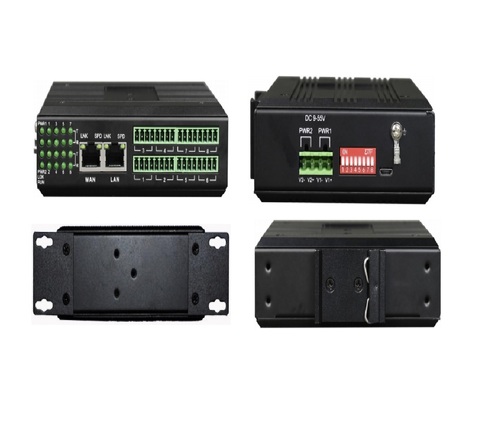

16*10/100/1000Base-TX RJ45 ports

Name: 16*10/100/1000Base-TX RJ45 ports
Brand: SUNDAR TECHNO SOLUTIONS
Price: 17000.0 INR
Availability: InStock

Price 17000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

16*10/100/1000Base-TX RJ45 ports Specification

Circuit Type
CAT6/CAT5e Structured LAN

Finish Type
Nickel Plated

Response Time
<5ms switching

Automation Grade
Industrial

Rated Voltage
125V

Temperature Range
-10C to +70C

Protection Level
IP20

Mechanical Life
750 mating cycles min

Max. Current
1.5A

Number of Module
16 Ports

Product Type
16*10/100/1000Base-TX RJ45 Ports Ethernet Switch Module

Material
Phosphor Bronze with Gold Plating

Insulation Resistance
1000 M min at 500V DC

Contact Resistance
50 m max

Max. Voltage
125V AC

Operating Temperature
0C to +70C

Stoke
Standard Modular Port

Size
163mm x 78mm x 27mm (LxWxH)

Color
Black/Silver

Weight
215g

Mounting Type
Panel Mount/DIN Rail

Current Rating
1.5A per port

No Of Poles
8P8C (RJ45, 8 Contacts)

Insertion Force
30N max

Shield Type
Shielded (STP) and Unshielded (UTP) Compatible

PoE Support
Optional (802.3af/at)

Transmission Speed
10/100/1000Mbps (Gigabit Ethernet)

Connector Standard
RJ45 Modular Jack

Retention Strength
135N min between jack and plug

Humidity
10% to 95% (non-condensing)

Compatible Cable Type
CAT5e/CAT6/CAT6a

Dielectric Withstanding Voltage
1000V AC/minute

Compliance
IEEE 802.3, 802.3u, 802.3ab

Storage Temperature
-40°C to +85°C

Contact Plating Thickness
1.27µm (microinch) gold over nickel

16*10/100/1000Base-TX RJ45 ports Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
50 Pieces Per Day

Delivery Time
15 Days

Sample Available
No

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
CE

About 16*10/100/1000Base-TX RJ45 ports

16*10/100/1000Base-TX RJ45 ports

Redundant DC12-58V power input with polarity reverse/over-current protection

Support one output relay alarm(terminal block Pin 5/6)for DC power failure

Powerful DIP switch function(on the top panel)

1. Port isolation; 2. Flow control; 3. QoS; 4. Broadcast storm restrain

Support 10K bytes jumbo frame

Support 6KV surge protection and ESD: Air-15KV, Contact-8KV protection

IP40 fan-less and Din-rail design

Operation temperature: -40+75

With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS,

power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other

industries

Robust Industrial Networking Solution

Engineered for dynamic industrial environments, this 16-port Gigabit Ethernet RJ45 module supports both shielded and unshielded cables, ensuring versatile compatibility. Its compliance with IEEE standards guarantees seamless integration into automated systems and IT infrastructure. The solid build quality and gold-plated contacts ensure stable, long-term connectivity, even in demanding locations.

Versatile Connectivity and Power

The module features optional Power over Ethernet (PoE) capability, letting you simplify network deployments by providing both data and power over the same cable. It integrates easily into various mounting setups, including panel mount and DIN rail, making it adaptable for a wide range of industrial and commercial applications.

FAQ's of 16*10/100/1000Base-TX RJ45 ports:

Q: How do I install the 16-port RJ45 Ethernet module in my network setup?

A: The module supports both panel mount and DIN rail installation, allowing you to fit it securely in industrial racks or on walls. Ensure you're using compatible cables (CAT5e, CAT6, or CAT6a) and follow standard wiring guidelines for connecting the module to your network devices.

Q: What types of Ethernet cables can be used with this module?

A: This module is compatible with shielded (STP) and unshielded (UTP) network cables, specifically CAT5e, CAT6, and CAT6a, allowing flexible integration into new or existing infrastructure.

Q: When should I consider using the optional PoE support?

A: Opt for PoE (IEEE 802.3af/at) when you wish to power compatible devices, such as IP cameras or VoIP phones, directly through the network cable, reducing the need for separate power supplies and simplifying installation.

Q: Where can this module be deployed for optimal performance?

A: This module is suited for industrial environments, automation systems, IT server rooms, and commercial network expansions in both exporters' and manufacturers' facilities. Its rated operating temperature and IP20 protection ensure reliable operation in controlled environments.

Q: What process ensures the durability and reliability of the module?

A: The RJ45 ports feature gold plating over nickel contacts for high conductivity and resistance to corrosion, phosphor bronze material for strength, and a robust design rated for at least 750 mating cycles, ensuring long-term mechanical durability.

Q: How does the module benefit your network infrastructure?

A: With 16 modular ports, gigabit transmission speeds, and robust industrial-grade design, it empowers your network with high throughput, flexible deployment, and enhanced reliability-critical for modern industrial automation and commercial data networks.
